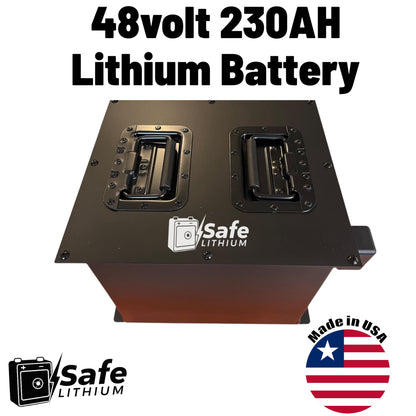

Safe Lithium - Golf Cart & UTV - 48V, 230AH Long Range

Made in the USA, 48 volt, 230AH Lithium Golf Cart & UTV Battery.

Transform your golf cart, UTV or LSV with this drop in lithium upgrade. Simple installation with the included charger and display. Experience the huge increase in performace and range from the weight reduction and steady supply of 51.2 volts.

Climb hills, tow or load the cart down, the high powered BMS will support heavy loads with 300a continous and 600a peak currents!

Proven Upgrade for Polaris Range EVs.

Key Feastures:

• 51.2V nomical Voltage, 16s configuration
• 300amp continous, 600amp peak discharge BMS
• Bluetooth
• 80-100 mile range! (typical, lifted, Golf Cart)
• 1/8" 5052 Aluminum Tig Welded Enclosure
• Flat Black Powdercoated Finish

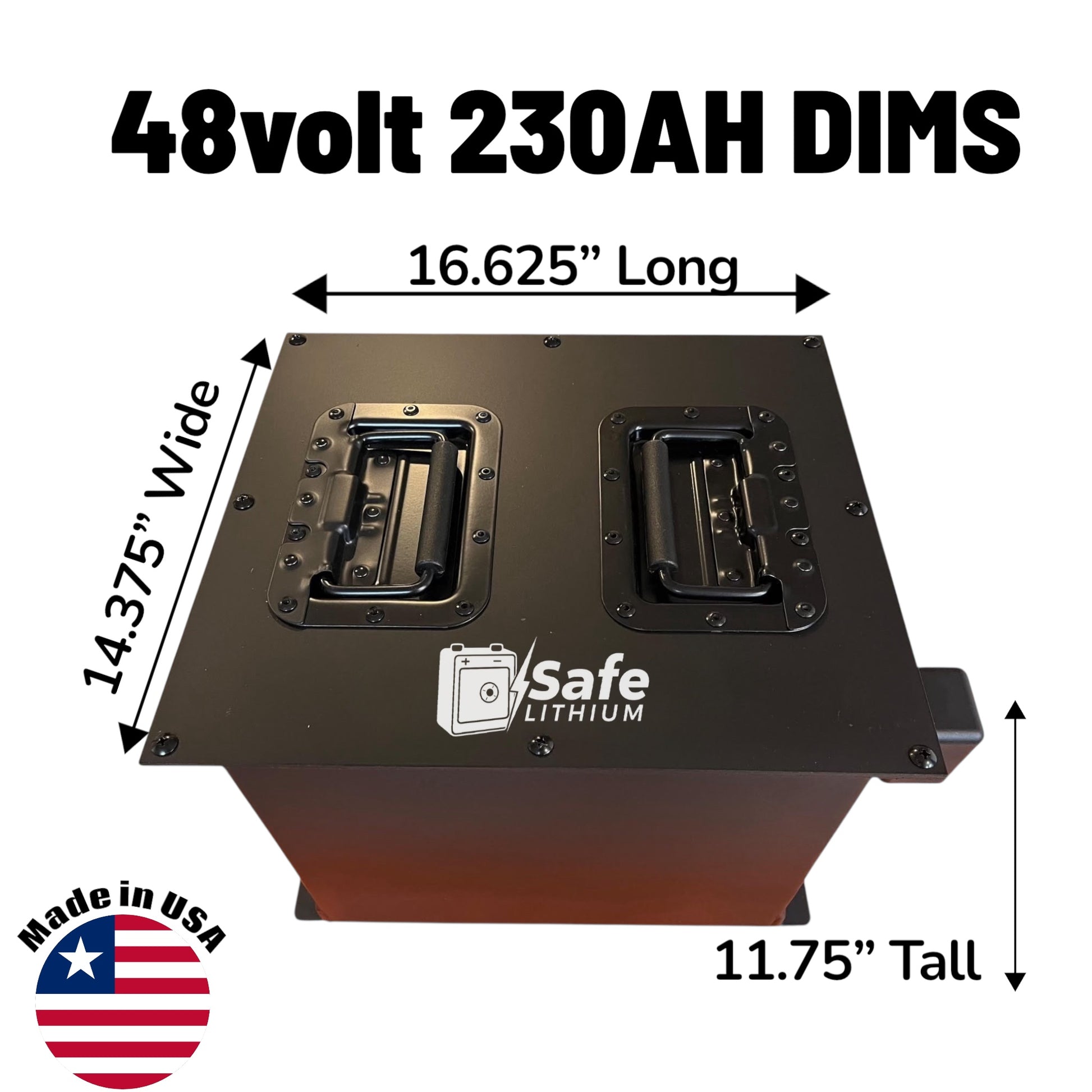

• 14.375" wide x 16.625" long x 11.75" tall
• 175lbs
• Included 20a Waterproof charger- profile is custom matched to the pack with full saturation. Also included is a 2-1/8" round shunt driven digial display.



  Technical Specs:

  SKU:	SL-48-16S-230
  System Voltage:	48V
  Nominal Voltage:	51.2V
  Chemistry:	LiFePO4
  kWh Capacity:	11.75kWh
  Ah Capacity:	230Ah
  Charging Voltage Range:	55.6 – 58V
  Max Charge Voltage:	58.4V
  Operating Voltage Range:	48 – 58.8V
  Suggested Low Voltage Cutoff:	48 – 50.8V
  BMS Cutoff Range:	42 – 47V
  Cell Configuration:	16S
  Max Continuous Discharge Current:	300A
  Max Continuous Power:	15,500W
  Max Discharge Peak Current:	600A (Max 3 seconds)
  Max Charge Current:	30A
  Charge Temperature Range:	-4°F – 131°F (-20°C – 55°C)
  Discharge Temperature Range:	-4°F – 140°F (-20°C – 60°C)
  Optimal Discharge Temperature Range:	59°F – 95°F (15°C – 35°C)
  Storage Temperature Range:	23°F – 95°F (-5°C – 35°C) (Max 3 months) 32°F – 77°F (0°C – 25°C) (Max 12 months)
  Weight:	175 lb (17.2 kg)
  Depth:	14.375 in (180 mm)
  Width:	16.625 in (260 mm)
  Height:	11.75 in (274 mm)
  Max Connections:	Up to (1) Parallel
  Protection Rating:	IP67 / NEMA 6
  Communications:	CANBus
